Description

Module Size: approx. 130*52*46mm

Input Voltage: 8-60V

Input Current: 20A

Quiescent Operating Current: 15mA

Output Voltage: 12-83 V continuous adjustable

Constant Current range: 0.3-20A

Output Power: = input voltage * 10A

Operating Temperature: -40 ~ + 85 degrees

Operating Frequency: 150 KHz

Conversion Efficiency: 95% (efficiency and input, output voltage, current, pressure difference)

Installation: column of 4pcs of 3mm

Connection mode: welding output (uses large current and pure copper wire)

Feature:

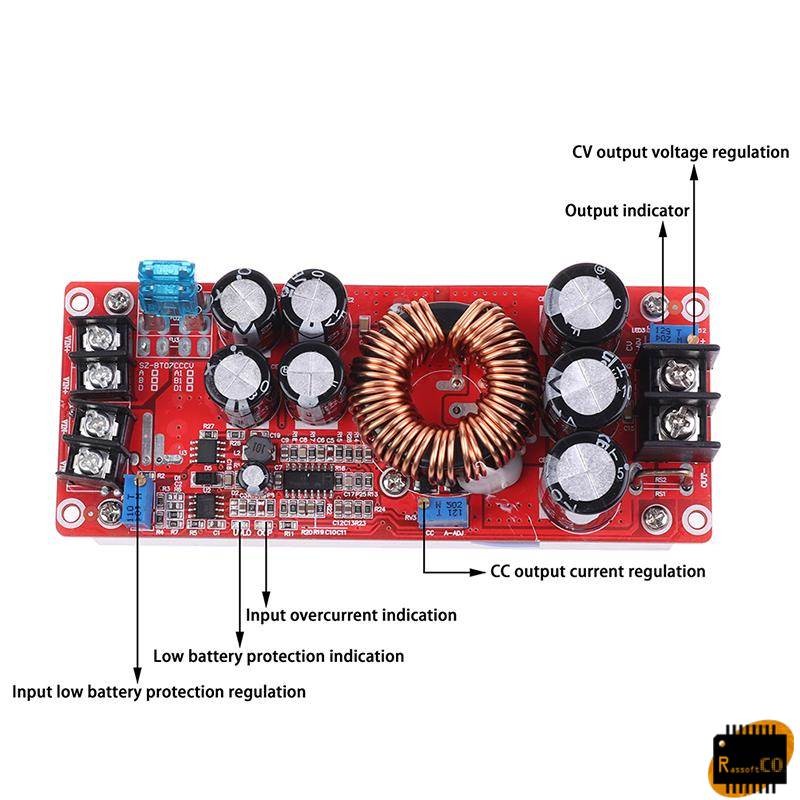

High power DC-DC boost constant current constant voltage adjustable power supply module

Over-current Protection: there is a certain range of error in the input of more than 30 a, Automatically reduces the output voltage.

Short circuit protection.
