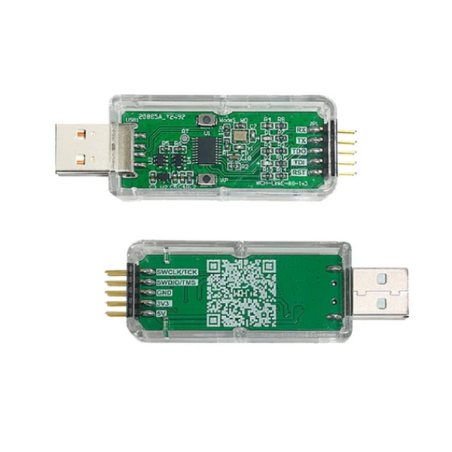

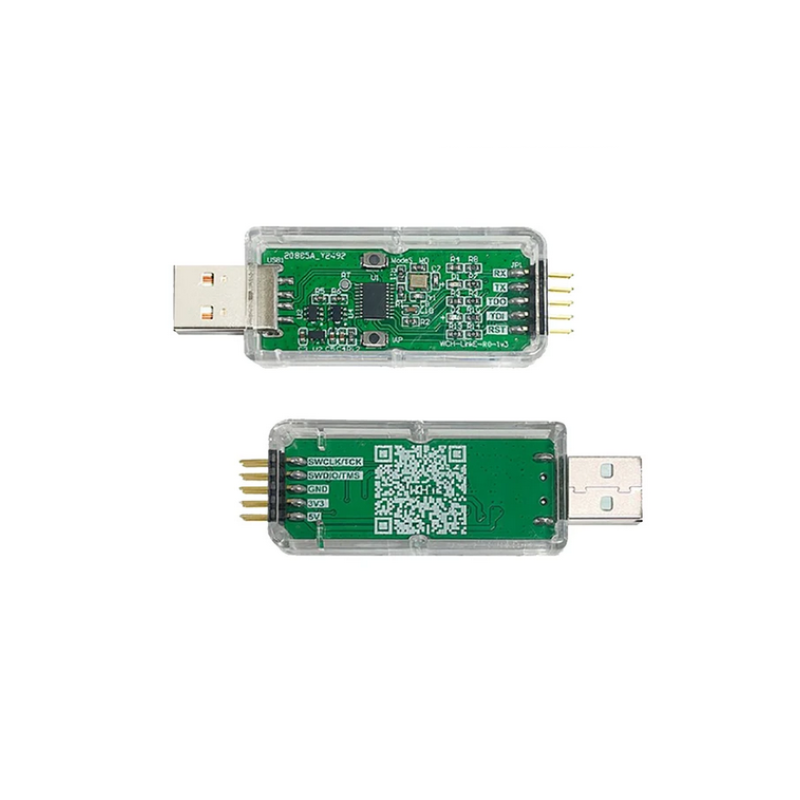

WCH-LinkE – Versatile RISC-V and ARM Programmer/Debugger CH32

$0.00

professional-grade debugger and programmer supporting WCH’s RISC-V and ARM family microcontrollers . It is the official and most efficient tool for developers working with low-cost MCUs such as the CH32V series (including the popular CH32V003) and the ARM-core CH32F series. Featuring a High-Speed USB 2.0 interface and baud rates up to 921600 bps, it ensures fast and reliable data transfer during development .

Quantity

In Stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Description
Product Details

Key Features

Dual Architecture Support: Works with RISC-V chips (via 1-wire/2-wire SWD) and ARM chips (via SWD or JTAG interfaces).
Built-in USB-UART Bridge: Provides a virtual serial port with baud rates up to 921600bps, perfect for debugging and serial print output .
Controlled Power Supply: Can power the target board at 3.3V or 5V with software control, featuring over-current protection and automatic power-off .
Fast Mode Switching: A dedicated mode key and colored LEDs allow easy switching between RISC-V and ARM modes without additional tools .
Modern USB Interface: Features a USB Type-C connector for easy and modern connectivity to computers.
IDE Compatibility: Officially supports MounRiver Studio, Keil uVision (for ARM), and can also be used with Arduino IDE after adding the appropriate core from GitHub .

Key Technical Specifications

Specification	Value
Supported Targets	WCH RISC-V (CH32V00x, V10x, V20x, V30x...) WCH ARM (CH32F10x, F20x...) Friendly chips supporting SWD
Host Interface	USB 2.0 High-Speed via USB Type-C
Protocols	RISC-V (1-wire/2-wire SWD) ARM (SWD, JTAG)
Target Power Output	3.3V & 5V (software controllable)
Max Serial Baud Rate	921600 bps
Protection	Reverse polarity protection, automatic power-off
Status LEDs	Red (Power/Error) and Blue (Operational)

Package Contents

1 × WCH-LinkE Programmer (Current Model)

Important Notes

Select the Correct Model: Ensure you purchase "WCH-LinkE" specifically (not the older WCH-Link), as the "E" version is required to support modern, low-cost chips like the CH32V003.
Firmware Update: It is highly recommended to update the firmware via the "WCH-LinkUtility" tool from the official website to ensure compatibility with the latest MCUs

(1) mounriver Studio Zugang Website: http://mounriver.com/

(2) wch-link utility access website: https:// www.wch.cn/downloads/wch-linkutility_zip.html

(3) wchisptool Zugang Website: https:// www.wch.cn/downloads/wchisptool_setup_exe.html

(4) wch-link Informations website: https:// www.wch.cn/products/wch-link.html .
