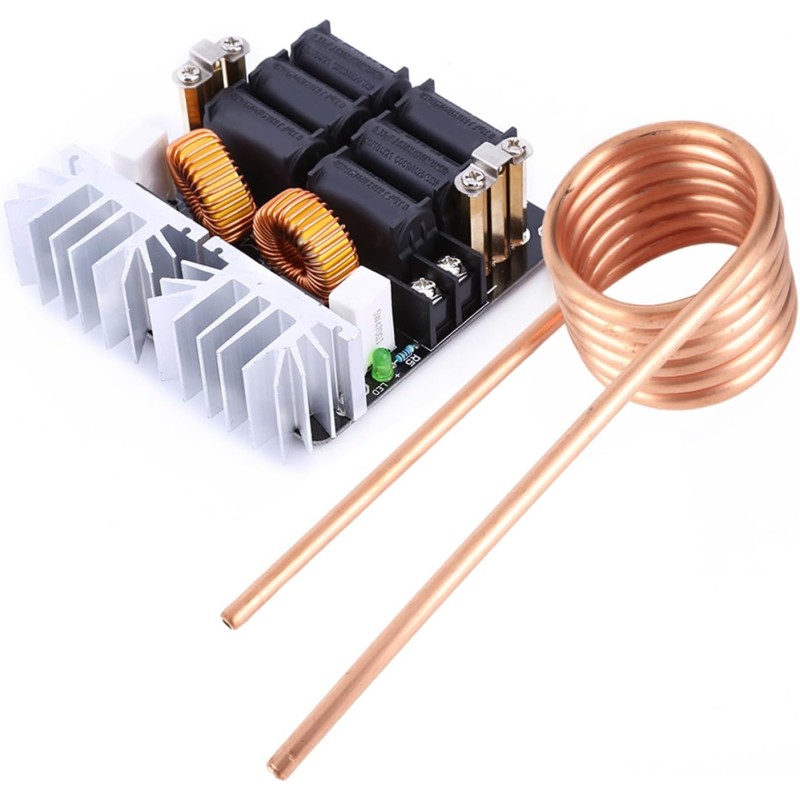

1000W ZVS Low Voltage Induction Heating Board – 12-48V (for Hardening, Annealing, Metal Melting)

$45.00

A high-power induction heating board based on ZVS (Zero Voltage Switching) technology, designed to heat metals quickly and efficiently using a low DC voltage of 12-48V. This board is a powerful tool for hobbyists and small labs to perform hardening, annealing, metal melting (e.g., gold, silver, copper), and desoldering large electronic components .

Quantity

In Stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Key Features

High Power up to 1000W: Fast and efficient heating thanks to up to 20A current (at 48V) .
Large Heating Coil: 40mm inner diameter and 50mm height, accommodating a 40mm crucible .
Improved Cooling: 8.5mm thick cooling substrate with M4 cooling pillars for efficient heat dissipation .
Flexible Operating Voltage: Runs on 12-48V DC – higher voltage gives higher heating power .
Versatile Applications: Suitable for hardening tools, annealing metals, melting small amounts of precious metals, and heat treatment of small parts .
Durable Design: Includes a complete set of driver circuit elements and brass components to withstand high temperatures .

Key Technical Specifications

Specification	Value
Max Power	1000W
Operating Voltage	12 – 48V DC
Max Current	20A
Coil Inner Diameter	40 mm
Coil Height	50 mm
No-load Current (24V)	3A
No-load Current (48V)	6A
Product Dimensions	25 × 17 × 7 cm
Weight	587 g
Brand	Ausla

Package Contents

1 × ZVS Induction Heating Board (with heating coil)
1 × Set of driver circuit elements and brass components

Important Notes: The package does NOT include the power supply, cooling unit (fan), or graphite crucible .

Basic Operating Requirements

To operate this board safely and effectively, you will need:

DC Power Supply: 12-48V DC, with sufficient current rating (at least 20A at 48V) (not included) .
Cooling Unit (Fan): A fan blowing top-down to cool capacitors and components (not included) .
Safety Gear: Heat-resistant gloves and safety glasses .

⚠️ Critical Safety Warnings

⚠️ Burn & Fire Hazard: Metal parts inside the coil can reach over 1000°C, posing a severe burn and fire risk .
⚠️ Electrical Hazard: The board operates at low voltage (12-48V), but high currents (up to 20A) are also dangerous. Avoid touching circuits while powered .
⚠️ Power-Up Sensitivity: When using a switching power supply, turn the supply on first until the output reaches 12V, then connect it to the heating board. Otherwise, the board may fail to start or get damaged .
⚠️ Metal Piece Size: The volume of the metal piece to be heated must not exceed 1/5 of the coil's internal volume. For a cylinder, its diameter must not exceed 1/3 of the coil's diameter , otherwise overload may occur .
