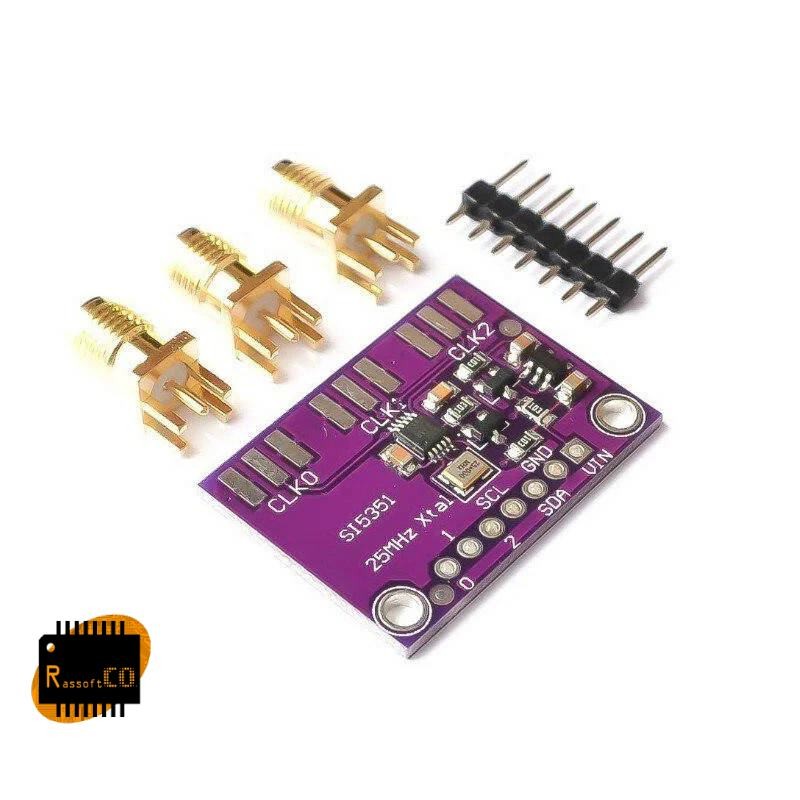

SI5351 I2C Signal Clock Generator Oscillator DDS 8KHz-160MHz Module

$7.20

The Si5351A clock generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLL’s and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. There are three independent outputs, and each one can have a different frequency. Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector.

Quantity

In Stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Description

    Generates up to 8 non-integer-related
    Frequencies from 8 kHz to 160 MHz
    I2C user-definable configuration
    Exact frequency synthesis at each output (0 ppm error)
    Highly linear VCXO
    The optional clock input (CLKIN)
    Low output period jitter: 100 ps pp
    Configurable spread spectrum selectable at each output
    Operates from a low-cost, fixed frequency crystal: 25 or 27 MHz
    Supports static phase offset
    Programmable rise/fall time control
    Glitchless frequency changesApplications:
        HDTV, DVD/Blu-ray, set-top box
        Audio/video equipment, gaming
        Printers, scanners, projectors
        Residential gateways
        Networking/communication
