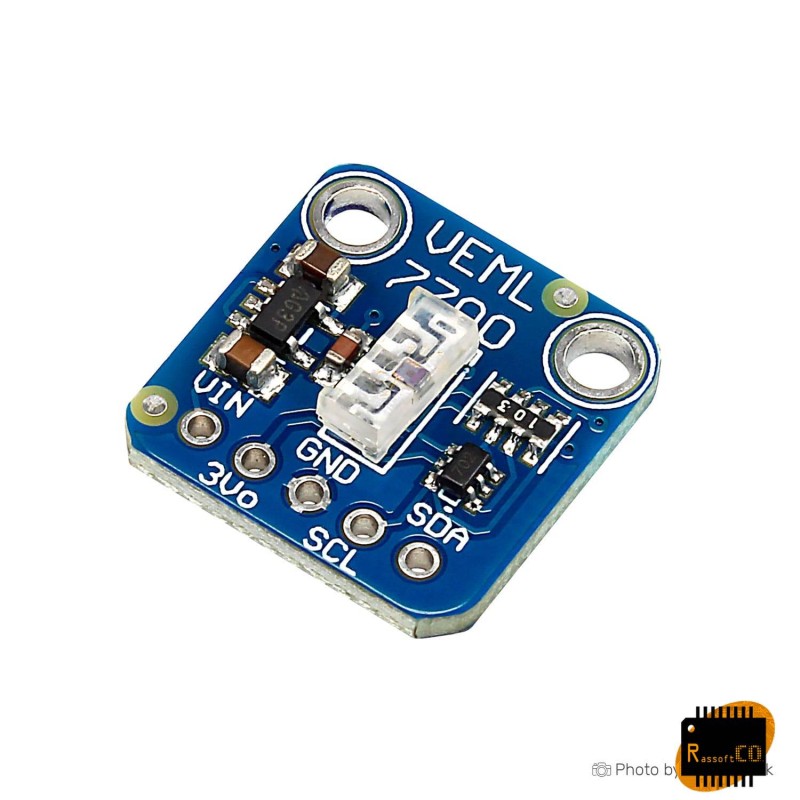

VEML7700 Ambient Light Sensor Module

$9.50

VEML7700 is a high accuracy ambient light digital 16-bit resolution sensor. It includes a high sensitive photo diode, a low noise amplifier, a 16-bit A/D converter and supports an easy to use Gravity I2C interface. It outputs a digital signal directly and no need for complicated calculations.

Quantity

In Stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

This is a more accurate and easier to use version of the simple photo resistor which only outputs a voltage that needs to be calculated in order to obtain meaningful data. The data which is output by this sensor is directly output in Lux (Lx). When objects which are lighted in homogeneous get the 1 lx luminous flux in one square meter, their light intensity is 1lx. Sometimes to take good advantage of the illuminant, you can add a reflector to the illuminant. So that there will be more luminous flux in some directions and it can increase the illumination of the target surface.

Features

    High Precision: 0.005 lx / ct
    Wide Range: 0 ~ 167Klx (BH1750 is 0 ~ 65Klx)
    Support Low-power consumption
    Support Gravity i2C interface

Specifications

    Supply Voltage: 3.3V - 5V
    Working Current: 45uA
    Shutdown Mode: 0.5uA
    Measuring Range: 0-120klx
    Accuracy: 0.0036 lx / ct
    Working Temperature: -25 ℃ ~ +85 ℃
    Dimension: 30 × 22 (mm) /1.81 x0.866 (inches)
    Weight: 12g
