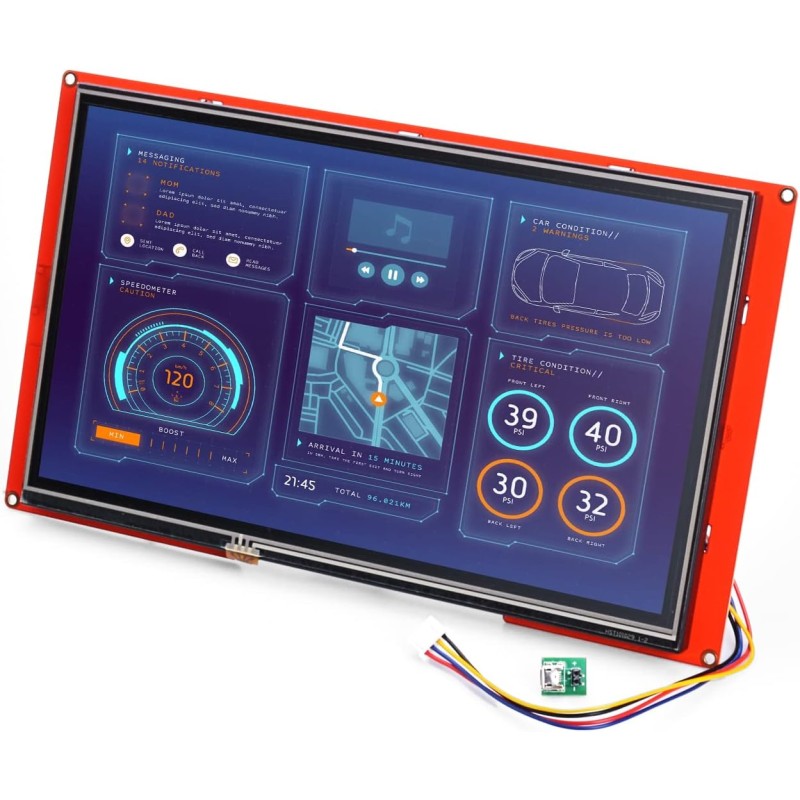

Nextion Intelligent NX1060P101 HMI Display 10 Inch 1024x600

$300.00

Complete HMI display with touchscreen. This screen can be serially controlled via an UART port. It also has GPIO outputs that can be controlled via the Nextion software. The graphical interface of this module can also be programmed via an SD card or via the UART connection.
Design your own screen interface with touchscreen in the Nextion software. For examples and library's see this Github.

Quantity

Last items in stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Nextion is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

The Nextion Intelligent screens have a number of advantages over the enhanced Nextion screens:

More powerful hardware in terms of MCU, flash storage and SRAM
Ability to play audio, video and animation options
Supports more advanced software features and functions such as transparent components, loading effects, drag and drop functionalities etc.

Specifications:

Input voltage: 4.75 - 6.5V (5V standard)
Input current : 800mA (max brightness), 170 mA (sleep mode). Recommended power supply: 5V, minimum 2A
Screen format: 10 inches
Screen resolution: 1024x600 pixels
Screen brightness: 0 ~ 300 nits (adjustable with 1%)
Touchscreen type: Resistive
Flash storage: 128MB
EEPROM: 1024 bytes
RAM: 512 KB
Instruction buffer: 1024 bytes
Colors: 64K (65536)
Speaker:
- 0.5 watt rated capacity
- Impedance of 16Ω
Available GPIO pins: 8x (including 4 PWM pieces)
SD card slot, FAT32. Suitable for a maximum of 32 GB SD card
Cable (4 pin) included with micro USB power adapter
Dimensions: 258 x 152 x 11.5mm
Has four M3 mounting holes
