Description:

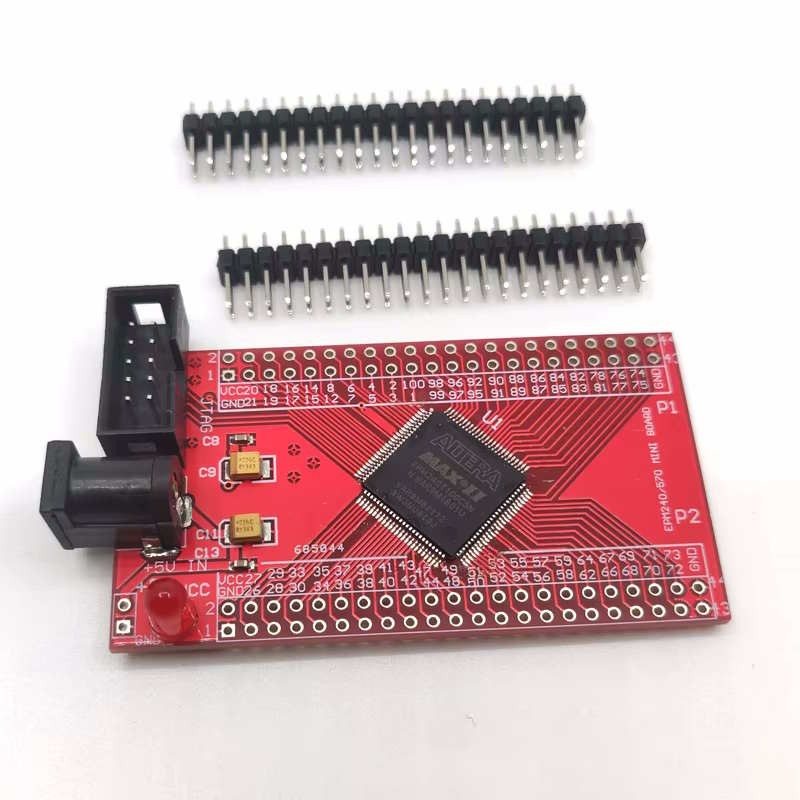

This product is the minimum system board of the MAX II series CPLD chip EPM240T100C5N of company.

It can be used for product verification and development with Byte-Blaster and USB-Blaster downloader.

Easy to use and installation: the module has JTAG, power interface and all connected pins you need, it can run after connecting to DC 5V power supply.

This CPLD chip is adapted to good low-cost CPLD/FPGA introduction.

According to all IO Ports of the board, the user can extend the external circuit such as LED lamp, digital tube, LCD screen , serial communication, etc.

Specification:

Working Voltage: DC 5V

Material: electrical component

Size: Approx. 69x38 mm/2.71x1.49 inch
