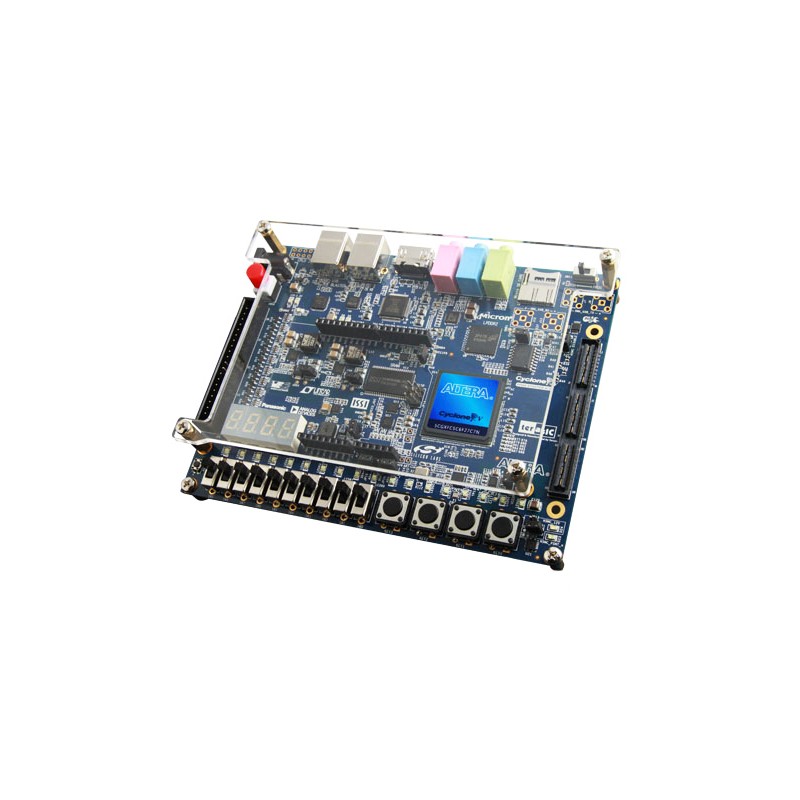

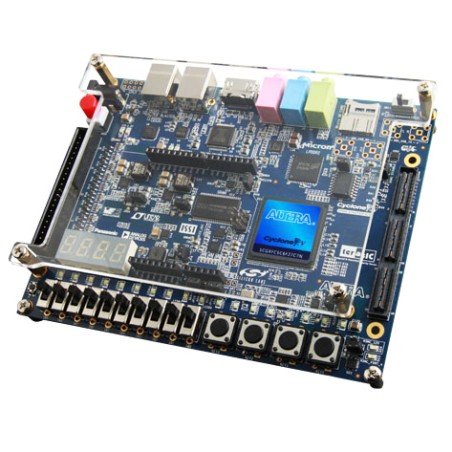

Terasic Cyclone® V GX Starter Kit

$485.00

A robust, low-cost hardware development platform built around the Altera Cyclone V GX FPGA. This kit is optimized for applications requiring high-speed transceivers with low power consumption. It offers the perfect balance between cost and performance, making it an excellent choice for developers and hobbyists alike .

Quantity

Last items in stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Key Features

High-Performance FPGA: Altera Cyclone V GX 5CGXFC5C6F27C7N with 77K Logic Elements (LEs) and 4884 Kbits of embedded memory .

High-Speed Transceivers: Six 3.125 Gbps transceivers, ideal for video processing and communications applications .

Ample Memory: 4 Gb LPDDR2 (32-bit data bus) and 4 Mb SRAM (16-bit data bus) for running complex applications smoothly .

Versatile Connectivity: Features HDMI TX (DVI v1.0 compatible), MicroSD card slot, UART over USB, and an integrated 24-bit audio CODEC with line-in, line-out, and microphone jacks .

Flexible Expansion Options: Includes an Arduino header (for adding shields), a 40-pin GPIO header, and a high-speed HSMC connector supporting 4 transceiver lanes .

Easy Programming: On-board USB Blaster with JTAG and AS configuration mode support .

Kit Contents

Cyclone V GX Starter Board

12V DC Power Supply

Type A to Type B USB Cable

Quick Start Guide

---------------------------------------
