Terasic MAX® 10 NEEK

Short Description

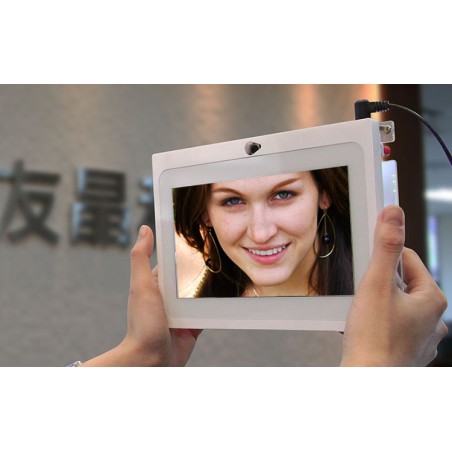

A comprehensive, high-performance embedded evaluation kit built around the Altera MAX 10 FPGA, Altera's first non-volatile integrated FPGA. The MAX 10 NEEK is specifically designed for multimedia applications, combining the power of an embedded Nios II processor with FPGA flexibility, featuring a 7-inch color capacitive touchscreen. This kit provides an integrated platform for developers to quickly and efficiently develop audio, video, image processing, and IoT applications .

Key Features

Non-Volatile FPGA: Altera MAX 10 10M50DAF484C6G with 50K Logic Elements (LEs) and 5,888 Kbits of embedded flash memory, eliminating the need for external configuration flash chips .

Dual On-Chip ADC: Features two integrated Analog-to-Digital Converters (ADCs), ideal for sensor applications and analog signal processing .

Interactive Touchscreen: 7-inch color LCD display with 800×480 resolution and 5-point capacitive touch support, perfect for advanced GUI applications .

High-Resolution Camera: 8-megapixel MIPI CSI-2 camera, ideal for computer vision and image processing applications .

HDMI Input: Features HDMI video input, enabling external video signal processing .

Integrated Sensors: Onboard humidity, temperature, light sensors, and a 3-axis accelerometer (G-Sensor) .

Comprehensive Connectivity: Supports Gigabit Ethernet, UART over USB, PS/2 for mouse/keyboard, and MicroSD card slot for storage .

Ample Memory: 256 MB DDR3 SDRAM and 512 Mb quad SPI flash memory .

Expansion Flexibility: Includes a TMD (Terasic Mini Digital) expansion header and a 3.5mm audio jack with line-in, line-out, and microphone support .

Kit Contents

MAX 10 NEEK Main Board

7-inch LCD Touchscreen Display

MIPI CSI-2 Camera (8 Megapixel)

Power DC Adapter

USB Cable

Ethernet Cable

MicroSD Card (with system image and reference designs)

Quick Start Guide

------------------------
