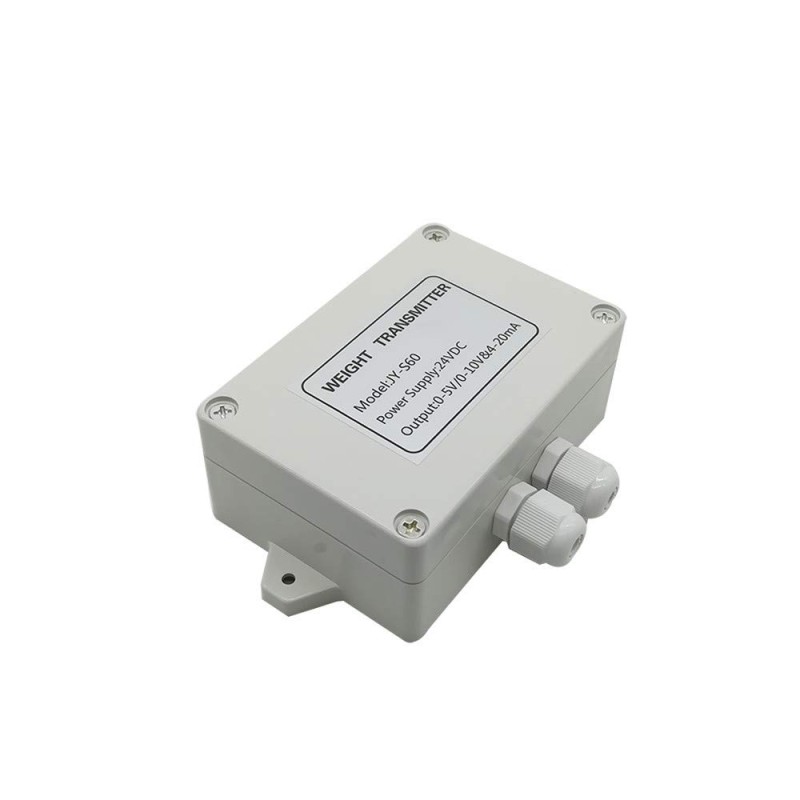

Weighing Scale JY-S60 Load Cell Amplifier Current Converter

$40.00

Weighing Scale JY-S60 Load Cell Amplifier Current Converter Weight Transmitter 24Vdc Supply 0-5V 0-10V 4-20mA Output Excitation Voltage 10V Sensitivity 2.0mVV

Quantity

In Stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Operating voltage: 24VDC

Output signal: 0-5V, 0-10V, 4-20MA

Input signal: sensor sensitivity : default 2.0mV/V, 1.0mV/V,

1.5mV/V (optional)

Output Excitation: Output Excitation Voltage: 5V/10V(E+)

optional

Operating temperature range: -20-80°C

Working environment humidity: 10%RH-90%RH

(non-condensing)

Accuracy: better than 0.2% F.S

JY-S60

Weight Transmitter

JY-S60

Gain adjustment

1: voltage fullness adjustment will load the system with a certain weight value (recommended range: 80% ~ 100% FS), calculate the output voltage value according to the proportional relationship between the loaded weight and the maximum weight value, monitor output with a digital multimeter, rotating voltage full Potentiometer (Vspan) adjusts full output.

2: Current fullness adjustment Load the system with a certain weight value (recommended range: 80%~100%FS), calculate the output current value according to the proportional relationship between the loaded weight and the maximum weight value, monitor the output with a digital multimeter, and rotate the current full The Ispan adjusts the full-scale output as close as possible to 20mA.

Retest

Leave the system in no-load condition and measure zero output; load a certain weight value and measure whether the output voltage meets the expected amplification. If not, please adjust again.

Reference 20014-17
