TCS34725 Color Sensor

$12.00

The TCS34725 device provides a digital return of red, green, blue (RGB), and clear light sensing values. An IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, minimizes the IR spectral component of the incoming light and allows color measurements to be made accurately. The high sensitivity, wide dynamic range, and IR blocking filter make the TCS34725 an ideal color sensor solution for use under varying lighting conditions and through attenuating materials. This data is transferred via an I2C to the host.

Quantity

In Stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Features

Integrated IR blocking filter
3.8M:1 dynamic range
Four independent analog-to-digital converters
A reference channel for color analysis (clear channel photodiode)

Benefits

Minimizes IR and UV spectral component effects to produce accurate color measurement
Enables accurate color and ambient light sensing under varying lighting conditions
Minimizes motion/transient errors
Clear channel provides a reference which allows for isolation of color content

This product suits for the following applications:

Light color temperature measurement
RGB LED consistency control
Health fitness
Industrial process control
Medical diagnostic equipment

Product parameters

Supply Voltage [V] 3.3-5V
Interface Max 5V Level I2C
Color Sensor Channels RGBC
IR Blocking Filter Yes
Programmable
Temperature Range [°C] -40 to 85

Module Connections

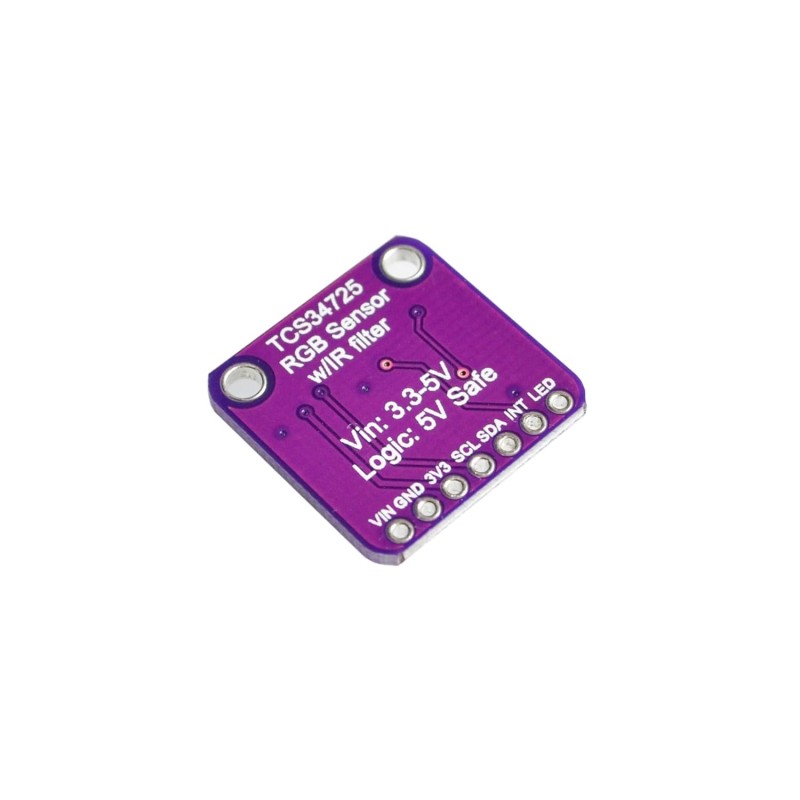

The module brings out the following connections.

1 x 7 Header

LED = LED control input. Leave floating for LED always on. Pull LOW to turn LED off
INT = Interrupt output active LOW. Output is open-collector so requires pull-up resistor. Connects to an interrupt input on the MCU if used.
SDA = I2C SDA line. Connects to SDA on MCU
SCL = I2C SCL line. Connects to SCL on MCU
3V3 = 3.3V output from the on-board 3.3V regulator
GND = Ground connects to ground on the MCU
VIN = Power input. Connects to 3.3V or 5V on the MCU
