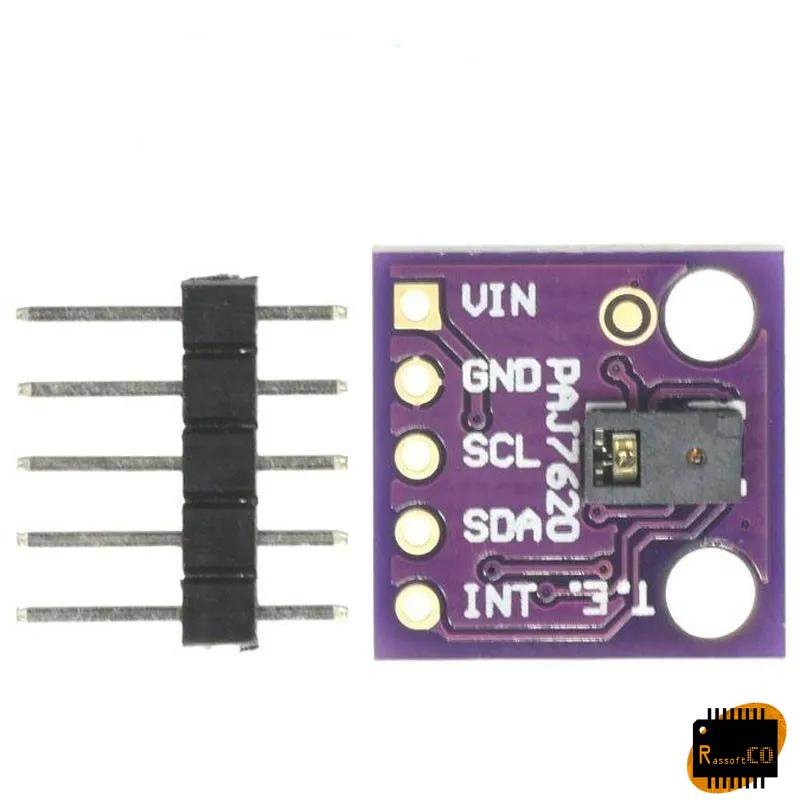

PAJ7620 gesture sensor

$16.80

PAJ7620 gesture sensor can recognize 9 gestures. Up, down, left, right, forward, backward, clockwise, counterclockwise and wave. These gesture recognition is easily accessible through the I2C bus. PAJ7620 also has a built-in approach detection to recognize the approach or departure of objects. PAJ7620U2 is designed with great flexibility in terms of power saving mechanism. PAJ7620U2 is designed to work from 2,8V to 3,3V over -40 °C to + 85 °C, and the pull-up voltage for I2C bus and interrupt line is 1,8V to 3,3V.

Quantity

Last items in stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

PAJ7620 gesture sensor specifications:
- Library
– Gesture mode: single object detection
– Image matrix size: 60 x 60
– Sampling Rate: 240 fps
– Operating distance: 20cm
– Output Types: 9 kinds of gestures: up, down, left, right, forward, backward, clockwise, counterclockwise and wave
– Cursor mode: Yes
– Interface: I2C / SPI
– Light source: Integrated IR LED with optics

Feature：
Typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V~3.3V
Nine gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave)
Gesture speed is 60°/s to 600°/s in Normal Mode and 60°/s to 1200°/s in Gaming Mode
Ambient light immunity: < 100k Lux
Built-in proximity detection
Flexible power saving scheme
I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V
Ambient light noise cancellation
Application：
PAD Phone
Tablet Personal Computer

Reference KAT11042023
