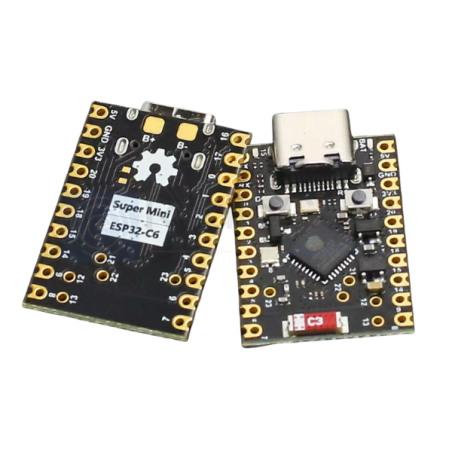

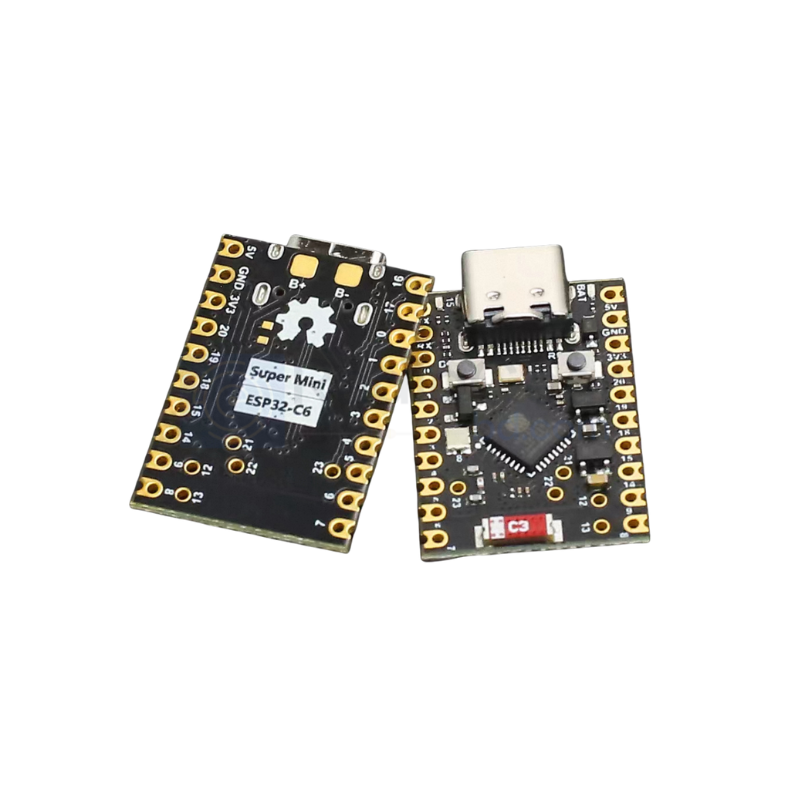

The ESP32‑C6 Super Mini is a compact, next-generation development board designed for powerful wireless connectivity and low-power IoT applications. Built around the ESP32-C6 SoC, it supports Wi‑Fi 6, Bluetooth 5.3 LE, and Zigbee/Thread, making it perfect for smart home, sensor networks, and embedded wireless systems.

🔧 Key Features:

• Processor: Single-core 32-bit RISC-V CPU, up to 160 MHz

• Memory: 512KB high-speed SRAM + 16KB low-power SRAM

• Flash: 4MB onboard (expandable up to 8MB)

• Wireless:

  • Wi-Fi 6 (2.4GHz) with Target Wake Time (TWT) for power savings

  • Bluetooth 5.3 LE with long-range and mesh support

  • IEEE 802.15.4 for Zigbee and Thread (Matter-ready)

• USB Support: USB 1.1 OTG (device and host capable)

• I/O Interfaces: Up to 22 GPIOs, supporting SPI, UART, I2C, I2S, PWM, ADC, and RMT

• Antenna: Available with onboard PCB antenna or external antenna connector

• Security: Hardware-based Secure Boot, Flash Encryption, and Cryptographic Accelerators

• Power Supply: 3.0V–3.6V with low-power sleep modes

📦 Dimensions:

• Size: Approx. 23 × 17.8 × 4.3 mm

• Operating Temperature: -40°C to +85°C

🛠️ Ideal Applications:

• Smart Home Devices (Matter, Zigbee, Thread)

• IoT Sensor Nodes

• Battery-powered wireless gadgets

• USB-enabled embedded systems

• BLE Mesh networks and Wi-Fi 6 projects

The ESP32-C6 Super Mini is perfect for developers who need cutting-edge wireless performance, advanced security, and low power consumption — all in a compact module that fits into tight builds with ease.
