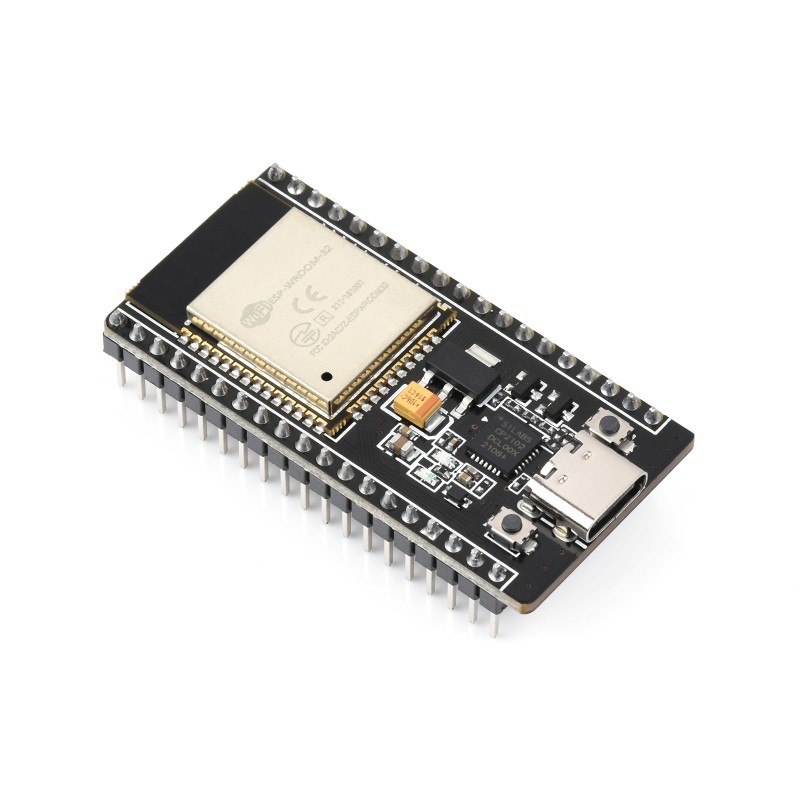

NodeMCU-32S, ESP32 WiFi+Bluetooth Development Board CP2102

$12.70

This is the NodeMCU development board based on ESP32, features WiFi+Bluetooth connectivity, onboard CP2102 and keys. What's more, all the I/O pins of ESP32 module are accessible via the extension headers.

Thanks to the rich open-source resources, it supports development in various ways such as Lua/AT commands/MicroPython/Arduino/IOT source code, etc. helps you to fast prototype IoT applications.

Quantity
In Stock



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Features

  • Onboard ESP32 module
  • Onboard CP2102, USB to UART converter
  • USB port for power input, firmware programming, or UART debugging
  • 2x19pin extension headers, breakout all the I/O pins of the module
  • 2x keys, used as reset or user-defined

Specifications

  • WIFI module: ESP32
    • Processor: ESP32
  • Built-in Flash: 32Mbit
  • Antenna: Onboard PCB antenna
  • Peripheral interface: UART/GPIO/ADC/DAC/SDIO/PWM/I2C/I2S
  • WiFi protocol: IEEE 802.11 b/g/n
  • Bluetooth: Bluetooth 4.2
  • Frequency range: 2.4G ~ 2.5G (2400M ~ 2483.5M)
  • WIFI mode: Station / SoftAP / SoftAP+Station
  • Power supply: 5V
  • Logic level: 3.3V
  • Dimensions: 51.4mm x 25.4mm

Applications

The NodeMCU-32S suit for IOT applications such as:

  • Smart home
  • Intelligent building
  • Industrial automation
  • Wearable devices
  • IP camera
  • Intelligent agriculture

Board Driver

Wiki 1

Learn 1
