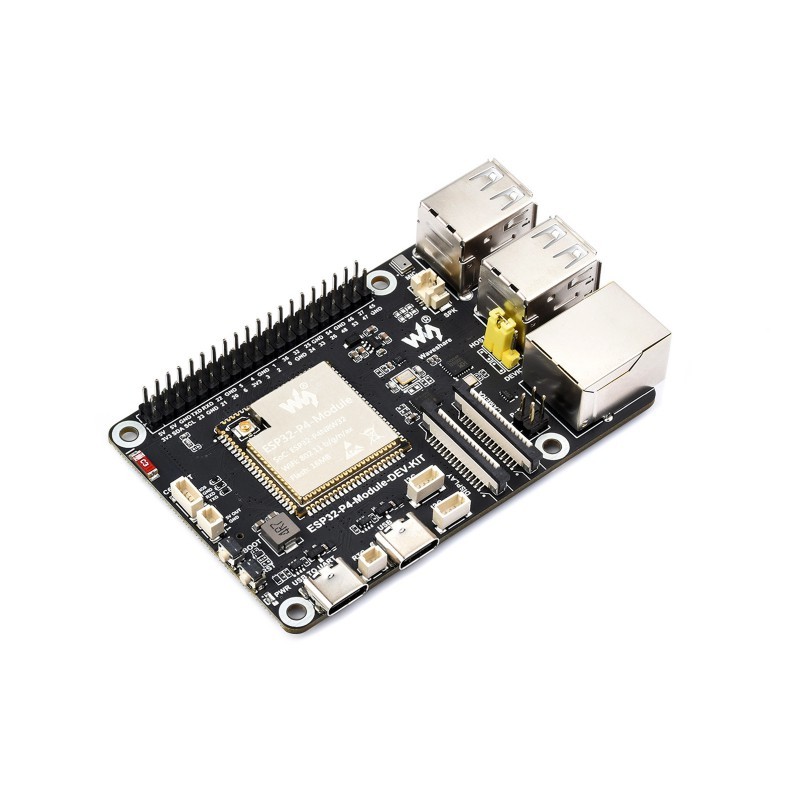

ESP32-P4-Module High-performance Development Board

$58.00

ESP32-P4-Module High-performance Development Board, Based On ESP32-P4 And ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5/BLE

Quantity
In Stock



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

What's On Board
ESP32-P4-Module-DEV-KIT development board, onboard components
  1. ESP32-P4-Module
    Built-in ESP32-P4NRW32, ESP32-C6, 16MB Nor Flash
  2. Display interface
    MIPI 2-lane
  3. Camera interface
    MIPI 2-lane
  4. Type-C UART connector
    for power supply, program burning and debugging
  5. RTC battery header
    for connecting rechargeable RTC battery (supports rechargeable RTC batteries only)
  6. Type-C connector
    for power supply and program burning
  7. I2C header
  8. I3C header
  9. PoE module header
    connect to external PoE module for PoE power supply function
  10. Onboard microphone

  1. Speaker header
    MX1.25 2P connector, supports 8Ω 2W speaker
  2. Type-A Ports
    USB OTG 2.0 high-speed ports, switching to HOST or DEVICE via jumper
  3. USB OTG function selection
    switching to HOST end for expanding USB ports
  4. RJ45 100M Ethernet port
  5. 40PIN GPIO header
  6. ESP32-C6 SMD Antenna
    SDIO 3.0 interface protocol, extending Wi-Fi 6 / Bluetooth 5
  7. ESP32-C6 UART header
  8. 5V power header
  9. BOOT button
    Press it when powering on or resetting to enter download mode
  10. RST Reset button
  11. Power supply indicator
  12. TF card slot
    SDIO 3.0 interface protocol
Pin definition
ESP32-P4-Module-DEV-KIT development board, pin definition
outline dimensions
ESP32-P4-Module-DEV-KIT development board, outline dimensions

25008

Specific References
