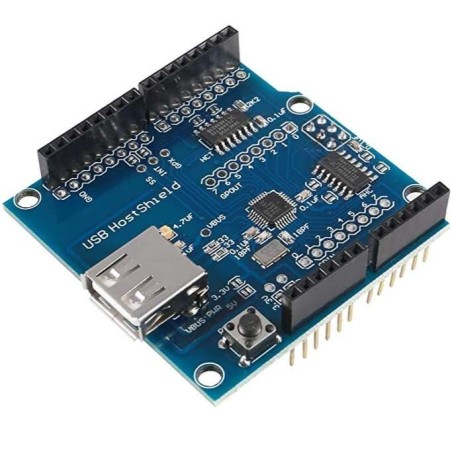

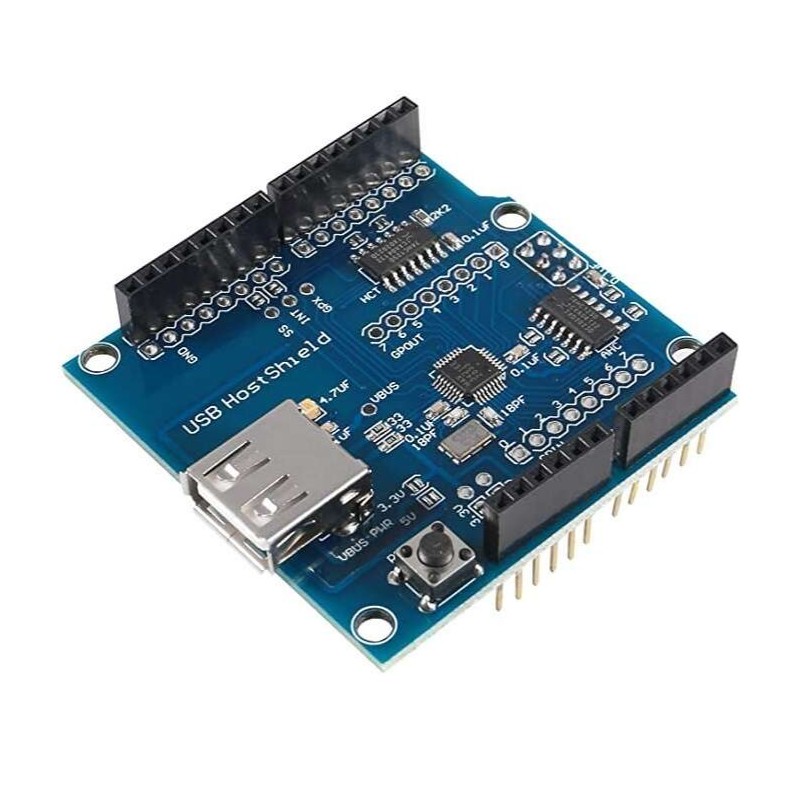

Arduino USB Host Shield V2.0 ADK – Interface USB Peripherals with Arduino

$22.00

An advanced shield that enables Arduino boards (such as Uno and Mega) to act as a USB Host, allowing you to connect and communicate directly with USB peripherals like keyboards, mice, joysticks, Bluetooth dongles, and USB flash drives . Powered by the MAX3421E USB host controller, it supports Full-Speed (12 Mbps) and Low-Speed (1.5 Mbps) devices. The included USB Host Library simplifies adding USB functionality to your projects, making it accessible even for beginners .

Quantity

In Stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Description
Product Details

Key Features

MAX3421E Controller: High-performance USB host controller for managing peripheral communication .
Wide Device Class Support: Supports HID devices (keyboards, mice, joysticks), game controllers (PS3, Xbox360, Wii), USB-to-Serial adapters (FTDI, PL2303), Canon/Nikon cameras (PTP), and ADK-compatible Android devices .
Arduino Compatibility: Works with Uno, Duemilanove, Mega 2560, and Mega 1280 (Mega 2560 recommended for larger projects) .
Flexible Pin Assignment: SPI and Interrupt pins can be reconfigured to avoid conflicts with other shields (especially useful with Mega boards) .
USB Hub Support: Allows connecting multiple USB devices simultaneously via an external USB Hub .
User-Friendly Library: Free USB Host Library with ready-to-use examples for rapid prototyping .

Key Technical Specifications

Specification	Value
USB Controller	MAX3421E
Supported Speeds	Full-Speed (12 Mbps), Low-Speed (1.5 Mbps)
USB Connector	USB Type-A Female
Current Consumption	Up to 500 mA (depends on connected device)
Compatible Arduino Boards	Uno, Duemilanove, Mega 2560, Mega 1280
Dimensions	53 mm × 50 mm
USB Hub Support	Yes (via external Hub)
