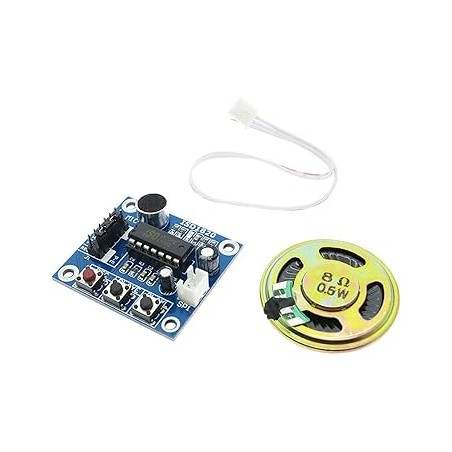

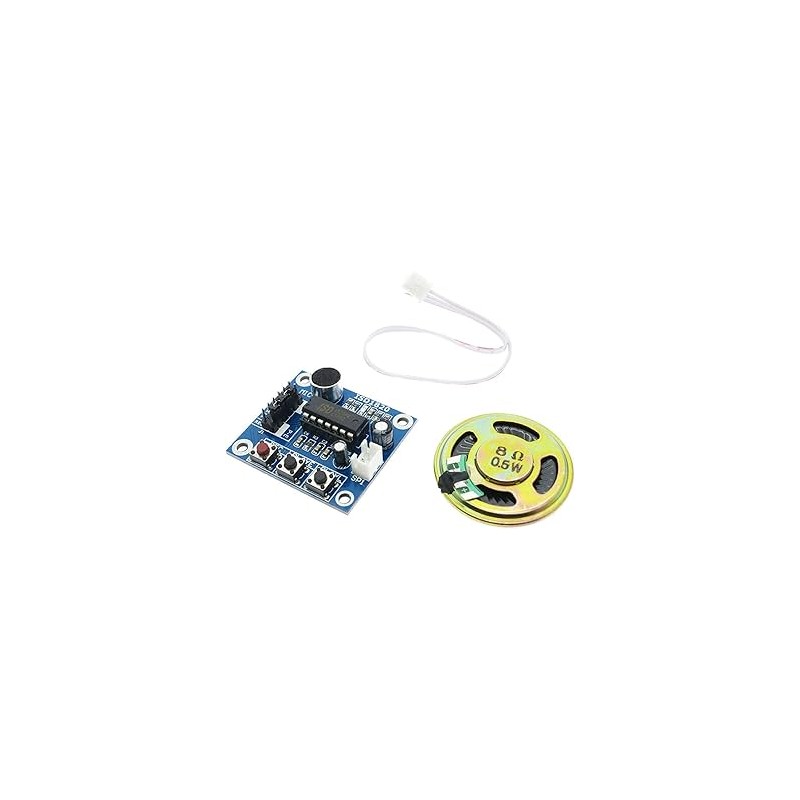

ISD1820 Record and Playback Module – Voice Recorder (Up to 20 Seconds)

$5.10

A compact voice recording and playback module based on the ISD1820 chip. It features embedded Flash memory that retains data for up to 100 years with up to 100,000 record/erase cycles . It can be used in Standalone mode using its onboard buttons or Microcontroller-driven mode (e.g., with Arduino), making it ideal for voice recording projects, sound alarms, and interactive games.

Quantity

In Stock

Security policy (edit with Customer reassurance module)

Delivery policy (edit with Customer reassurance module)

Return policy (edit with Customer reassurance module)

Key Features

Adjustable Recording Duration: Records from 8 to 20 seconds (adjustable via onboard potentiometer) .
Two Playback Modes: Edge-activated or Level-activated playback for flexible triggering .
Onboard Microphone: Built-in microphone for direct recording without external components .
Built-in Audio Amplifier: Can directly drive an external 0.5W / 8Ω speaker .
Wide Operating Voltage: Runs on 2.4V to 5.5V DC, compatible with most microcontrollers .
Auto Power-Down: Automatically enters standby mode after playback to save power .
Natural Voice Quality: Provides high-quality, natural voice output thanks to the integrated circuit design .

Key Technical Specifications

Specification	Value
Control Chip	ISD1820
Recording Duration	8 – 20 seconds (adjustable)
Operating Voltage	2.4V – 5.5V DC
Microphone	Onboard
Speaker Driver	Built-in (supports 8Ω / 0.5W)
Storage Memory	Embedded Flash (100 years data retention)
Record/Erase Cycles	Up to 100,000 cycles
Board Dimensions (approx.)	8 × 6 × 3 cm
Operating Modes	Standalone or Microcontroller-driven

Pin Configuration

Pin	Label	Description
VCC	2.4V – 5.5V	Power supply
GND	Ground	Ground
FT	FeedThrough	Passes microphone input directly to the speaker
REC	Record	Set HIGH to start recording (must stay HIGH for the recording duration)
PLAY-E	Playback, Edge	HIGH pulse (then LOW) starts playback until the end of message
PLAY-L	Playback, Level	LOW→HIGH starts playback; returning to LOW stops playback
SP+ / SP-	Speaker Output	Connect an external 8Ω / 0.5W speaker
MIC	Microphone Input	External microphone input (can replace onboard mic)
